TRICOM ADAPTERS & ACCESSORIES

RUGGED. DEPENDABLE. FOR RAPID DEPLOYMENT.


POWER SUPPLY

TCR-AC-DC-600 / 28 VDC, 600W

                                       Tricom P/N: 11000-00861

                                     Tricom P/N: 11000-00861

  • Tricom Research, Inc. is pleased to announce the arrival of our new power supply line of products. The Tricom Research 11000-00861 power supply is a 600W AC-DC power supply that accepts universal AC input of 90 to 264 VAC at 50/60/440Hz.
  • The TCR-AC-DC-600 is more than capable to power any amplifier in the Tricom Research, Inc. product line. With two output connectors designed in, the power supply boasts enough power to satisfy two TCR-MBA-50-WB PAs simultaneously, (and many of our case systems as well).
  • Tricom Part Number: 11000-00861

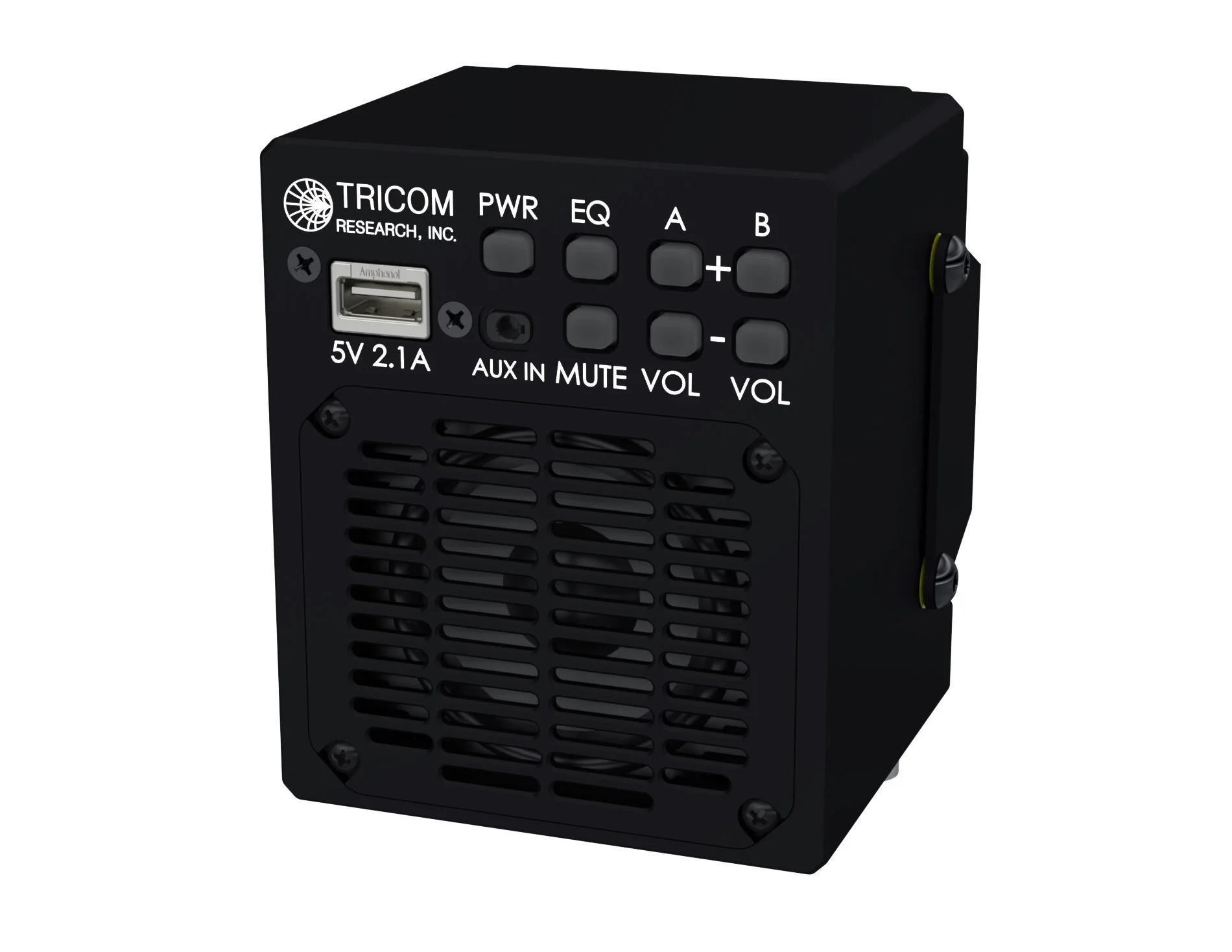

AMPLIFIED SPEAKER
TCR-SPK-01 Tactical Comms Speaker

  • The Tricom Research Amplified Speaker is a compact, rugged and light weight tactical communications speaker designed to operate in the most rigorous environments the modern day war fighter is operating in, from fixed base station communications to tactical vehicle communications installations.
  • Standard D-SUB 9 pin male connector is provided for easier vehicular and portable systems integration
  • A standard DB9 serial extension cable can be used to remote the speaker up to 50 feet
  • Speakers are sold as stand alone products
  • Optional Cables and Accessories:
    • Tricom P/N 77500-00451 - 6 foot DC cable for BX-XX90 battery operation
    • Tricom P/N 77500-00452 -- 6 foot DC cable for vehicle cigarette lighter adapter
    • Tricom P/N 77500-00442 -- 6 foot (six pin) audio connector cable
    • Tricom P/N 77500-00443 -- 6 foot DC power cable with flying leads
    • Tricom P/N 77500-00444 -- DB9 speaker remote extension cable
  • Tricom Part Number 11000-00713




AMPLIFIED DUAL NET SPEAKER
TCR-SPK-02 Tactical Comms Speaker

  • The Tricom Research Amplified Dual Net Speaker is a compact, rugged and light weight tactical communications speaker designed to operate in the most rigorous environments the modern day war fighter is operating in, from fixed base station communications to tactical vehicle communications installations.
  • A standard D-SUB 15 pin male connector is provided for easier vehicular and portable systems integration
  • Speakers are sold as stand alone products
  • Optional Cables and Accessories:
    • Tricom P/N 77500-00442 -- 6 foot (six pin) audio connector cable
    • Tricom P/N 77500-00443 -- 6 foot DC power cable with flying leads
    • Tricom P/N 77500-00577 -- 6 foot Dual PTT DSUB (15 pin) audio cable
    • Tricom P/N 77500-00579 -- two standard GC-329 audio connectors and flying leads for power
    • Tricom P/N 77500-00579 -- two custom low-profile right-angle audio connectors and flying leads for power
  • Tricom Part Number 11000-00771






ADAPTERS

Allow the use of BX-XX90 style batteries to power external devices for extended periods of time. A wide variety of input and output connector devices are available, as well as computer power supplies.

Part Number: 11000-00045
• 1 Battery Input • 4 Tajimi Outputs

Part Number: 11000-00047
• 1 Battery Input • 2 Tajimi Outputs

Part Number: 11000-00153
• 3 Battery Input • 6 Tajimi Outputs


ANTENNA SWITCHES


Part Number: 11000-00554

  • Allows the user the ability to connect 2 antennas to the antenna port of any handheld radio (AN/PRC-148 or AN/PRC-152). A mechanical switch allows the user to switch between the 2 antennas with virtually no signal loss. Frequency range < 1GHz


CLICK HERE FOR THE TRICOM RESEARCH, INC. 2018 PRODUCT CATALOG
